JOCA DC cable.
Solar DC cable · Single core & twin core

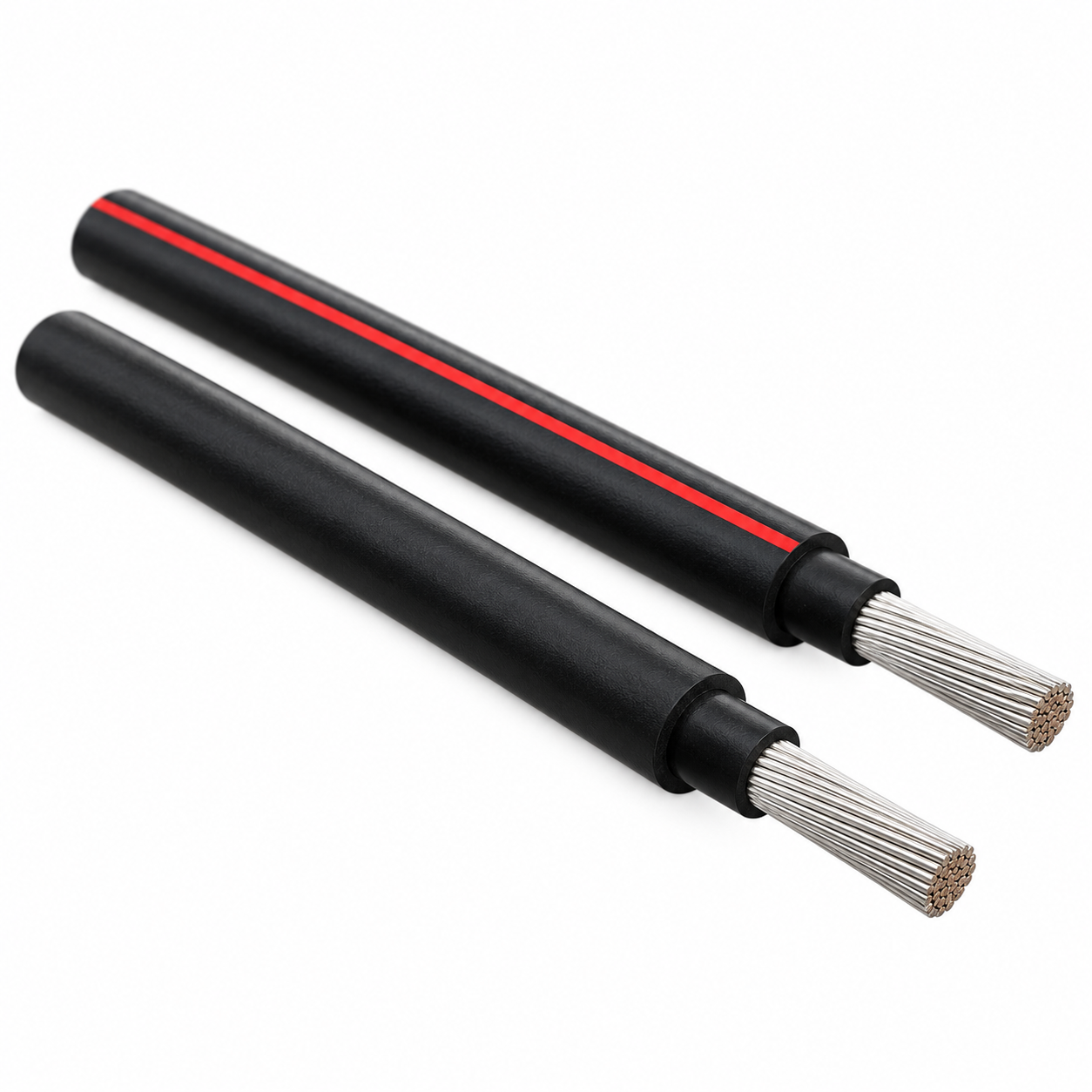

Single core solar cable
- Available sizes
- 4 mm² · 6 mm² · 10 mm² · 16 mm²
- Configuration
- 1 × 4 / 6 / 10 / 16 mm²
- Jacket options
- Black with red stripe · Black
- Rated voltage
- 1500 V DC
- Conductor
- Flexible tinned copper
- Insulation / sheath
- XLPO

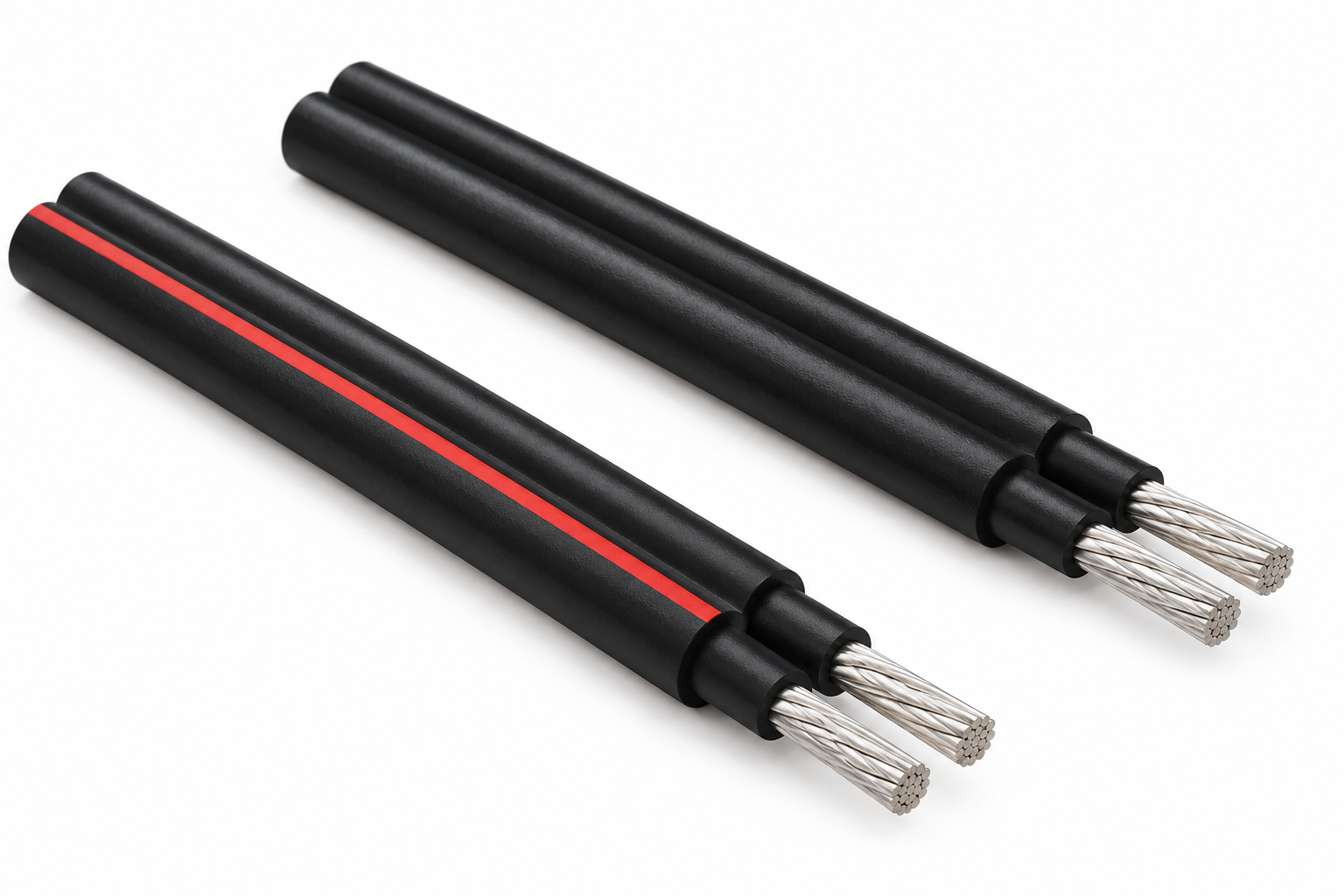

Twin core solar cable
- Available sizes
- 4 mm² · 6 mm² · 10 mm² · 16 mm²
- Configuration
- 2 × 4 / 6 / 10 / 16 mm²
- Jacket options
- Black with red stripe · Black
- Rated voltage
- 1500 V DC
- Conductor
- Flexible tinned copper
- Insulation / sheath
- XLPO
Construction & performance.
- Manufacturer
- JOCA Special Cable (Shanghai)
- Cable type
- H1Z2Z2-K
- Conductor
- Class 5 flexible tinned copper
- Insulation / sheath
- Cross-linked polyolefin (XLPO)
- Rated voltage
- 1500 V DC
- Operating temperature
- −40°C to +90°C
- Flame propagation test
- EN 60332-1-2
- Outdoor performance
- UV, ozone and weather resistant
- Insulation property
- Halogen-free XLPO

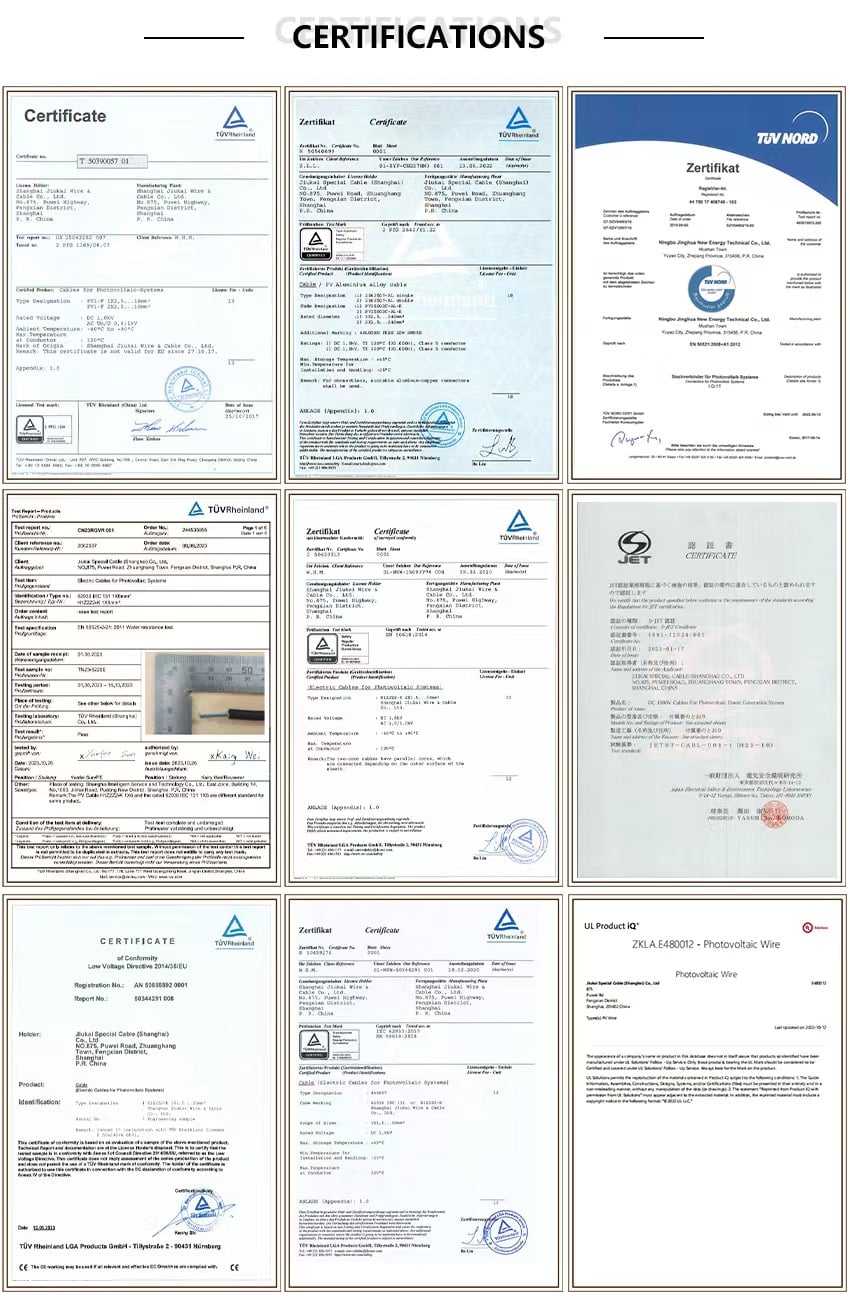

JOCA certifications.
TÜV RheinlandTÜV NORDULS-JET
Standards & declarations
EN 50618IEC 62930CERoHS
Manufacturer-published certificate collection. Different certificates cover different cable types and markets; UL 4703, CPR Cca and AD8 documents must match the selected construction. CE and RoHS are declaration/compliance references.
Manufacturer documentation ↗
Open certificate collection ↗
